Electrical Safety Monitoring Solutions
This digital intelligent safety monitoring hardware solution is applicable to industrial plants, power distribution rooms, confined operation areas, equipment warehouses and other scenarios. It adopts a three-layer hardware architecture consisting of the communication layer, acquisition layer and dynamic environment monitoring system, with three core monitoring capabilities covering gas safety, environmental conditions and on-site security.

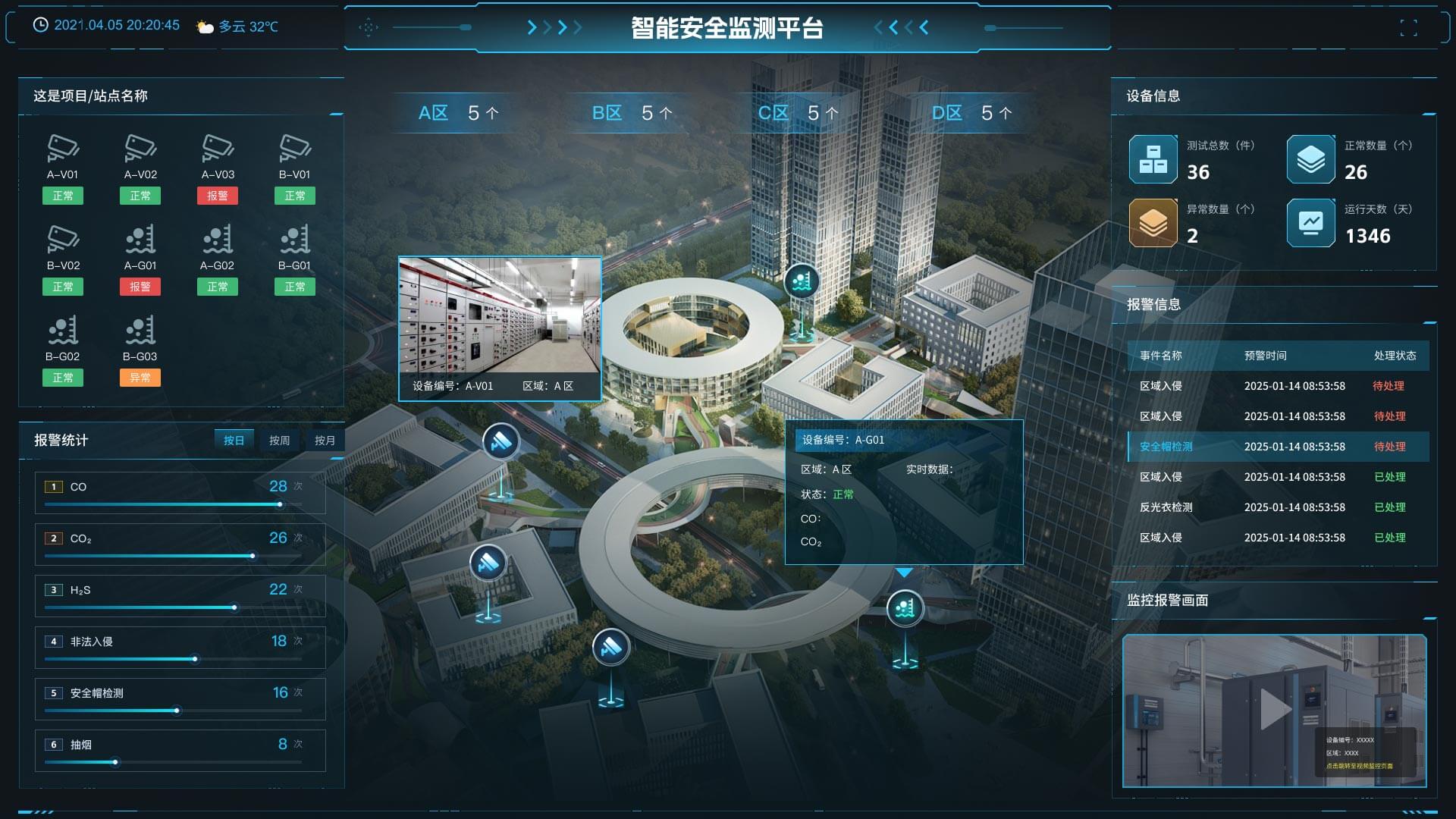

Targeting the pain points of traditional safety monitoring, including single monitoring means, delayed hazard early warnings and numerous blind spots in manual inspections, the solution delivers real-time monitoring of safety risks, automatic abnormal alarms and visual, controllable on-site conditions through high-precision sensing, stable data transmission and all-weather intelligent monitoring. It builds a three-dimensional, unattended intelligent safety monitoring system.
Solution Advantages：
1. Full-Coverage 3D Monitoring
Integrates gas detection, environmental monitoring and security surveillance to cover all potential hazards such as flammable & toxic harmful gas leakage, fire, water immersion, abnormal temperature & humidity and unauthorized access, eliminating monitoring blind spots.
2. Accurate & Real-Time Early Warning
Equipped with high-precision industrial sensing devices to rapidly capture gas leaks and abnormal environmental parameters. Featuring high detection accuracy and fast response, it enables early discovery, early warning and early disposal of hidden risks.
3. Stable & Reliable Communication
Built on an industrial-grade communication framework that supports multi-device data aggregation and protocol conversion. It supports data caching and offline data resume transmission to ensure continuous, authentic and valid monitoring data.
4. Flexible Compatibility & Scalability
Adopts modular and lightweight design for easy deployment and strong compatibility. Suitable for both new site construction and renovation projects, it allows flexible addition or removal of monitoring points according to on-site requirements.
5. Intelligent Cost & Efficiency Optimization
Automated monitoring and remote visual supervision replace manual patrols, cutting labor costs and human errors. It realizes low-manpower or fully unattended safety management and raises the standardization level of safety control.

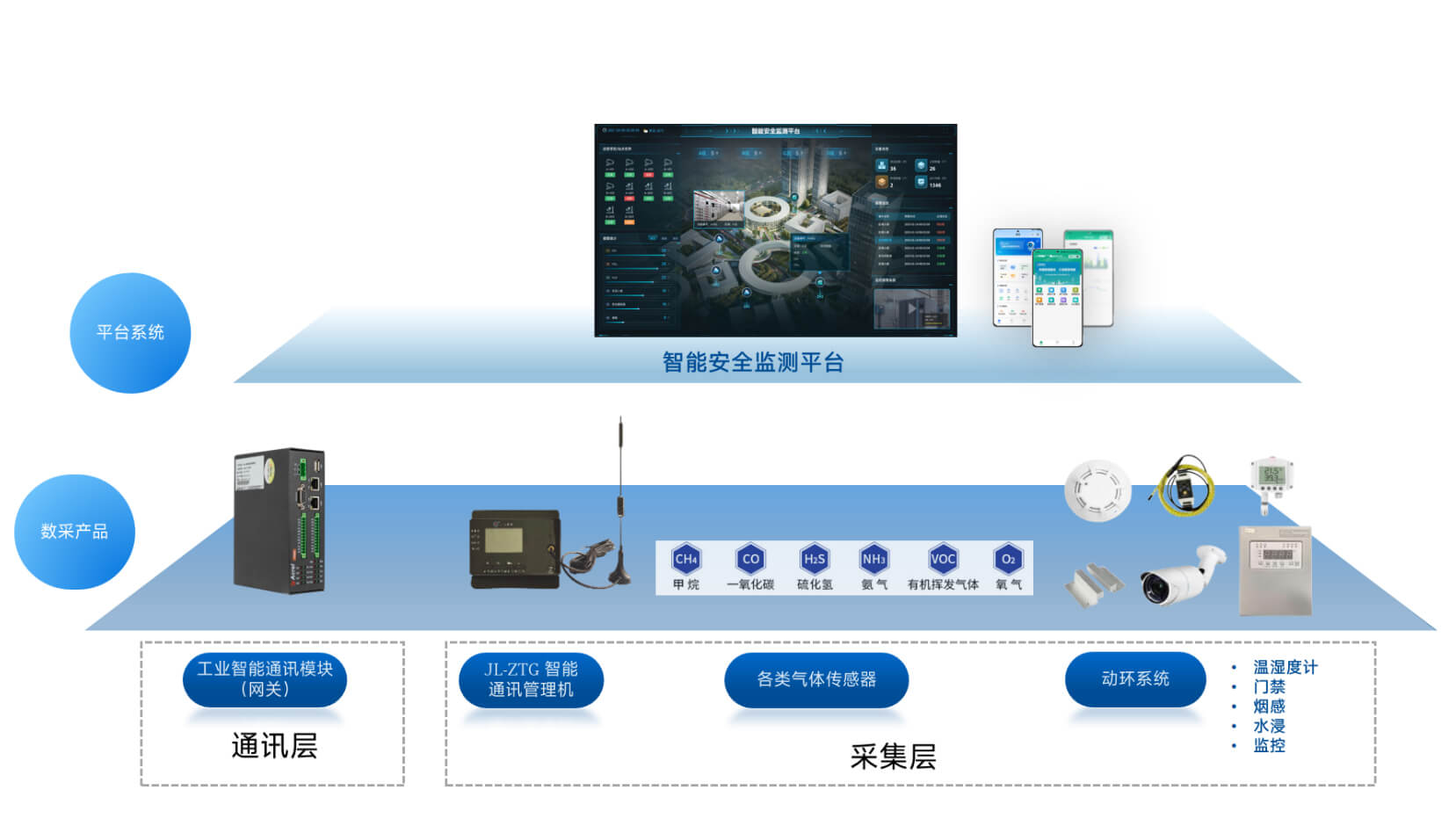

Core Hardware Composition：
1. Communication Layer: Core Hub for Data Transmission & Interaction
Serving as the central hub for system data exchange, the communication layer undertakes on-site device data aggregation, protocol conversion and cloud upload to guarantee smooth and real-time synchronization of monitoring data links.
Core Hardware:
① Industrial smart communication module (gateway)
② 'Four Remote' communication cabinet
③ smart power distribution communication cabinet
2. Acquisition Layer: High-Precision Sensing Terminals for Safety Data
As the underlying sensing core of the system, the acquisition layer performs high-precision collection of on-site gas and environmental safety data, providing accurate data support for risk analysis and intelligent early warning.
Core Hardware:
① JL-RCT Capacitor Temperature Measurement Module
② JL-RCM Capacitor Capacity Measurement Module
③ JL-ZTG Intelligent Communication Management Unit
④ JL-YB Series Smart Meters (Type 67 and Type 91)
3. Dynamic Environment Monitoring System: Intelligent Monitoring System for On-Site Environment & Security
The dynamic environment monitoring system delivers 24/7 uninterrupted monitoring of site environment and security, comprehensively filling gaps in on-site safety control to safeguard the stable operation of equipment and sites.
Core Hardware:
① Temperature & humidity meters
② access control units
③ smoke detectors
④ water immersion sensors
surveillance cameras
Feel free to contact us —
we strive to earn your trust.
