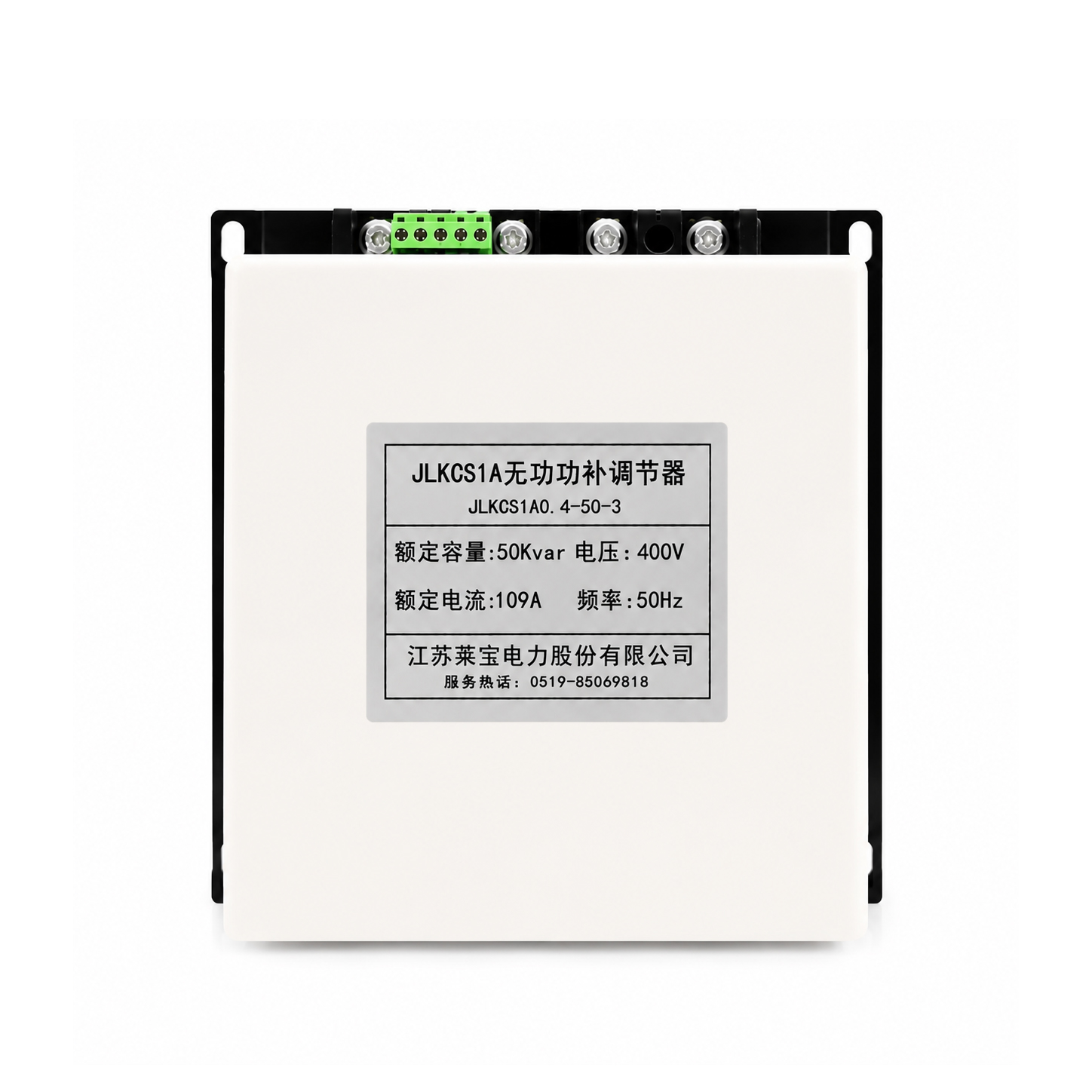

JLKCS Series Fast Dynamic Reactive Power Compensation Controller

Product Overview

The JLKCS series fast-acting dynamic reactive power compensation controller is a power-electronic device designed for the rapid switching of power compensation capacitors. Its electrical structure primarily consists of high-power anti-parallel thyristor modules, isolation circuits, triggering circuits, synchronization circuits, control and protection circuits, and driver circuits. It is equipped with control signal terminals and offers two switching modes: three-phase common compensation and three-phase independent split-phase compensation. The device features strong anti-interference capabilities, ease of installation and maintenance, a rapid switching response time of less than 20ms, zero-inrush current switching, silent operation, and high stability and reliability. Additionally, it includes functions such as phase-loss protection and operating status indication, making it an ideal component for capacitor bank switching in dynamic reactive power compensation systems.

Technical Parameters

Specifications and Models	Rated current (A)	Drive capacitor capacity (kvar)	Rated voltage（V）	Overall dimensions (mm)	Mounting dimensions (mm)
JLKCS1A0.4‑10‑3	20	Three‑phase 10kvar	400	154190185	144*175
JLKCS1A0.4‑20‑3	38	Three‑phase 20kvar	400	154190185	144*175
JLKCS1A0.4‑30‑3	63	Three‑phase 30kvar	400	154190185	144*175
JLKCS1A0.4‑40‑3	90	Three‑phase 40kvar	400	154190185	144*175
JLKCS1A0.4‑50‑3	100	Three‑phase 50kvar	400	154190185	144*175
JLKCS1A0.4‑60‑3	120	Three‑phase 60kvar	400	154320185	144*300
JLKCS1A0.4‑70‑3	150	Three‑phase 70kvar	400	154320185	144*300
JLKCS1A0.4‑80‑3	170	Three‑phase 80kvar	400	154320185	144*300
JLKCS3F0.25‑5*3‑1	30	Single‑phase 5kvar*3	250	154190185	144*175
JLKCS3F0.25‑10*3‑1	60	Single‑phase 10kvar*3	250	154190185	144*175
JLKCS3F0.25‑15*3‑1	90	Single‑phase 15kvar*3	250	154190185	144*175
JLKCS3F0.25‑20*3‑1	120	Single‑phase 20kvar*3	250	154320185	144*300

Conditions of Use

①　Ambient air temperature: -25°C to +50°C, with the average temperature over a 24-hour period not exceeding +35°C;

②　Relative humidity: up to 90% for short periods at a temperature of +25°C;

③　Altitude: not exceeding 1,000 m;

④　Installation site conditions: clean air; free from explosive or flammable materials; free from gases that could damage insulation or corrode metal; free from conductive dust; protected against rain, snow, and severe mold growth; and free from significant levels of harmonic distortion.
