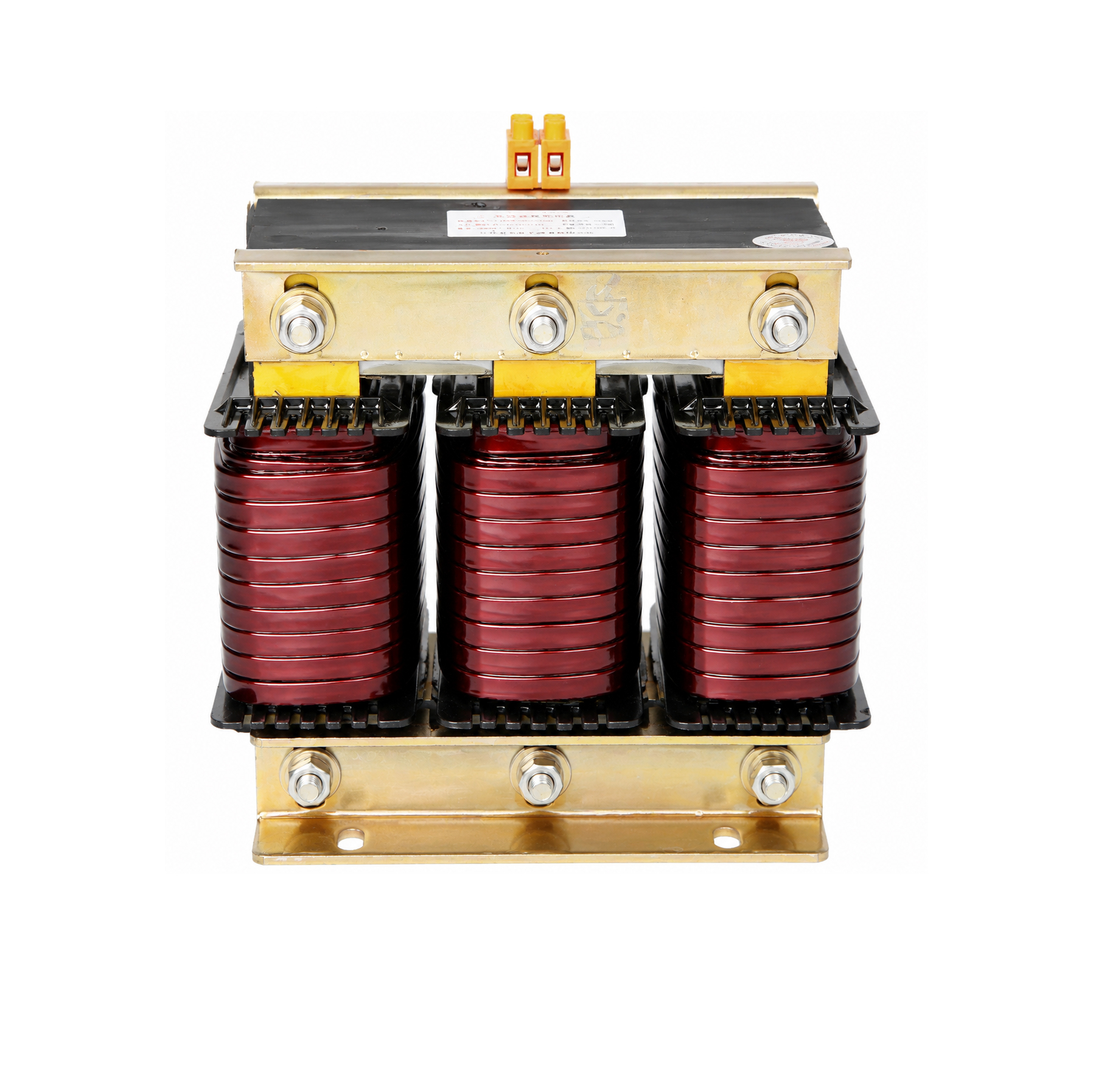

JLCKS(D)G Series Low-Voltage Iron-Core Series Reactor
The JLCKSG low-voltage iron-core series reactor is a key component of low-voltage reactive power compensation systems. Connected in series with low-voltage shunt capacitors within the power supply system, it not only facilitates reactive power compensation but also suppresses the amplification of high-order harmonics, limits high-order harmonic currents flowing into the capacitors, filters out a portion of these harmonic currents, restricts inrush currents during capacitor switching, and ensures the safe operation of low-voltage shunt capacitors and other power distribution equipment.
Product Overview
The JLCKSG low-voltage iron-core series reactor is a key component of low-voltage reactive power compensation systems. Connected in series with low-voltage shunt capacitors within the power supply system, it not only facilitates reactive power compensation but also suppresses the amplification of high-order harmonics, limits high-order harmonic currents flowing into the capacitors, filters out a portion of these harmonic currents, restricts inrush currents during capacitor switching, and ensures the safe operation of low-voltage shunt capacitors and other power distribution equipment. Incorporating our company's innovative manufacturing processes, this product features high linearity, low temperature rise, and low losses, ensuring stable operation within low-voltage reactive power compensation systems.
Performance Characteristics
① Utilizes high-quality cold-rolled silicon steel sheets, resulting in low losses, minimal heat generation, and excellent linearity;
② Uses Class H or Class C high-temperature resistant enameled flat or round copper wire;
③ The entire reactor undergoes Class H varnish impregnation, specifically using a vacuum impregnation process;
④ Clamps, brackets, fasteners, and similar components are made of non-magnetic materials;
⑤ Equipped with a temperature protection device.
Technical Parameters
| System rated voltage | 0.23–1.4 kV |
| Compatible low‑voltage shunt capacitor capacity | 5–150 kvar |
| Permissible load | 1.35 times rated current |
| Reactor‑to‑capacitor matching ratio | 6%, 7%, 12–14%, etc. |
| Suitable for applications with moderate harmonic levels; suppresses inrush current while also suppressing higher‑order harmonics (such as the 3rd, 5th, 7th, and 11th); | |
Operating Environment
① Indoor installation.
② Altitude not exceeding 2000 m (specify if exceeding 2000 m when ordering).
③ Ambient temperature: -25°C to 45°C.
④ Free from severe mechanical vibration, harmful gas vapors, conductive dust, and explosive atmospheres.
